LMH-L Linear Bushing

Home>> Linear Bearings>>Linear Bearings >> LMH-L Linear Bushing

LMH-L Linear Bushing

LMH-L Linear Bushing

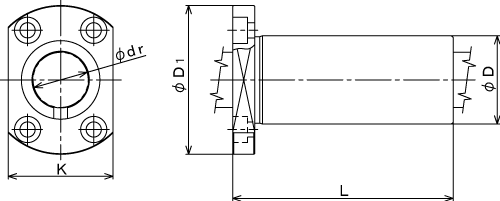

Drawing

Datasheet

Model No.				Main dimensions
	Inscribed bore diameter			Outer diameter		Length		Flange	diameter
	dr	Tolerance		D	Tolerance	L	Tolerance	D₁	Tolerance
		Precision	High		Precision/High
	mm	mm	mm	mm	mm	mm	mm	mm	mm
LMH 6L	6	—	—	12	0	35	0	28	0
					–0.013				–0.2
LMH 8L	8	—	—	15	0	45	0	32	0
					–0.013				–0.2
LMH 10L	10	—	—	19	0	55	0	39	0
					–0.016				–0.2
LMH 12L	12	—	—	21	0	57	0	42	0
					–0.016				–0.2
LMH 13L	13	—	—	23	0	61	0	43	0
					–0.016				–0.2
LMH 16L	16	—	—	28	0	70	0	48	0
					–0.016				–0.2
LMH 20L	20	—	—	32	0	80	0	54	0
					–0.019				–0.2
LMH 25L	25	—	—	40	0	112	0	62	0
					–0.019				–0.2
LMH 30L	30	—	—	45	0 -0.09	123	0	74	0 -0.02
